Harvia Cilindro
- 6.6–10.8 kW
- 10 models
- Residential
- Floor-standing pillar heater with a grate-like outer shell holding a large stone mass.
- Steam character can be varied: water on the side gives softer steam, water on top gives sharper steam.
- Sold in manual-switch versions, E versions (separate control unit), XE versions (stand-alone digital panel supplied) and XW versions (panel with WiFi supplied).
Control unit: some models in this range need a separate control panel, sold separately. We confirm the compatible control and sensor for your model.
Stones: 5–10 cm, 75–120 kg by model, as Harvia's manual specifies. Stones wear with use; Harvia asks for them to be rearranged at least once a year, more often with frequent use. Follow the manual. About sauna stones
Models
| Model | Product code | Output | Room volume | Stones | W × D × H | Supply (as published) |
|---|---|---|---|---|---|---|
| PC66E | HPCE66400 | 6.6 kW | 5–9 m³ | 75 kg | 255 × 255 × 1,340 mm | 400V 3N~ |
| PC70E | HPCE700400 | 6.8 kW | 6–10 m³ | 80 kg | 320 × 320 × 930 mm | 400V 3N~ |
| PC90E | HPCE900400 | 9 kW | 8–14 m³ | 90 kg | 320 × 320 × 930 mm | 400V 3N~ |
| PC110E | HPCE1104 | 10.8 kW | 9–18 m³ | 120 kg | 365 × 365 × 1,070 mm | 400V 3N~ |
| PC70XE | HPC704XE | 6.8 kW | 6–10 m³ | 90 kg | 320 × 320 × 930 mm | 230V~ / 230V 3~ / 400V 3N~ |
| PC90XE | HPC904XE | 9 kW | 8–14 m³ | 90 kg | 320 × 320 × 930 mm | 230V 3~ / 400V 3N~ |
| PC70XW | HPC704XW | 6.8 kW | 6–10 m³ | 90 kg | 320 × 320 × 930 mm | 230V~ / 230V 3~ / 400V 3N~ |
| PC90XW | HPC904XW | 9 kW | 8–14 m³ | 90 kg | 320 × 320 × 930 mm | 230V 3~ / 400V 3N~ |
| PC70 | HPC700400 | 6.8 kW | 6–10 m³ | 80 kg | 320 × 320 × 930 mm | 230V~ / 230V 3~ / 400V 3N~ |
| PC90 | HPC900400 | 9 kW | 8–14 m³ | 80 kg | 320 × 320 × 930 mm | 230V~ / 230V 3~ / 400V 3N~ |
Harvia's published figures. Room volumes are a guide: glass, stone and other heavy or uninsulated surfaces need more output, and we size equipment for the actual room. Electrical supply, protection and installation in Australia are designed and carried out by a licensed electrician to the manufacturer's instructions.
Finishes
- Stainless Steel (steel)

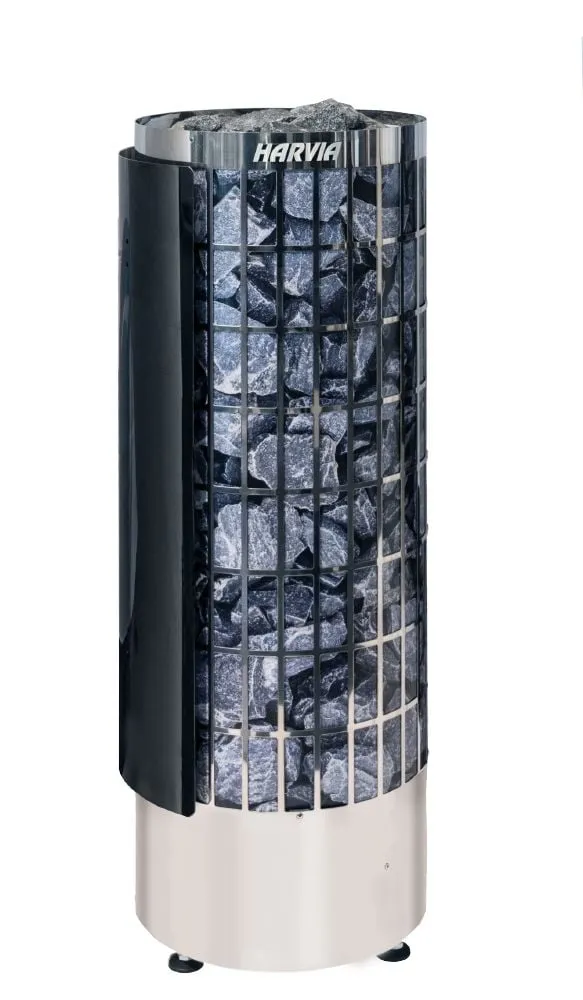

- Black Steel (BlackSteel) for selected models, e.g. HPCE700400M, HPCE900400M, HPC7004MXE
Gallery
Documents
- Harvia Cilindro Instructions for Installation and Use (multilingual incl. English) (PDF on Harvia's site, opens in a new tab)
- Data sheet HPCE700400 (PC70E) (PDF on Harvia's site, opens in a new tab)
- Data sheet HPCE900400 (PC90E) (PDF on Harvia's site, opens in a new tab)
- Harvia Spare Parts (brochure) (PDF on Harvia's site, opens in a new tab)
Product information and images from Harvia, last checked 4 October 2026. Harvia may change its range; we confirm current models, availability and pricing when you enquire.
Ask about this equipment.
Buying for a new room, replacing equipment or supplying it on its own: tell us about the space or the existing model. We will recommend what suits it, confirm whether it is in our Noosaville stock or needs to be ordered (by air or sea freight, depending on urgency and availability), and quote it. We are the Queensland agent for Harvia and also supply interstate.
